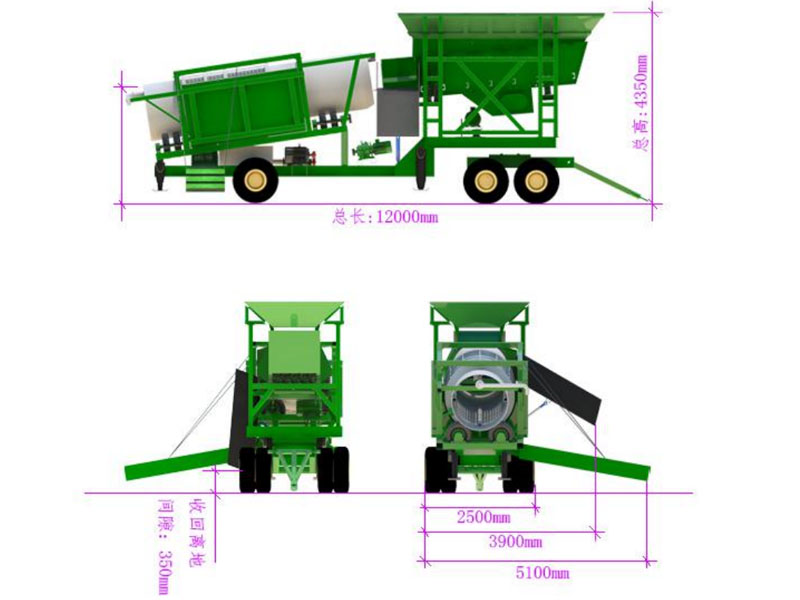

移动淘金筛选机

移动淘金筛选机

移动淘金筛选机是用来进行砂金矿筛选回收的设备,这种设备在非洲、中亚、南美等地区使用非常的广泛。以前国内砂金矿开采制度不严格的时候,国内使用这种设备的是比较多的。后来国内的矿产资源管控比较严格,大部分沙金从业者前往国外进行砂金矿的开采工作。国人前往国外投资矿产企业给当地也带来了经济发展

移动淘金筛选机

移动淘金筛选机

移动淘金筛选机


移动淘金筛选机技术参数Technical parameter


名称
Productions

规格
Specifications

数量
Quantity

功率
Power
/Kw

备注
Remark

底盘
chassis

三轴12条9.00-2#轮胎;
自制重型汽车底盘,采用30#\25#工字钢梁焊接
Three axle 12 tire 9.00-2

1套
1set

-

含牵引&转向系统
Including traction & steering system

振动给料机
Vibrating feeder

给料槽规格:4800X1000,20mm厚板
料斗:4800X2300,16mm厚板
上层篦条:28*90链条钢,间距70mm
Feed tank specification: 4800X1000, 20 mm thick plate
Hopper: 4800 x2300, 16mm thick plate
Upper grate: 28 * 90 chain steel, spacing 70mm

1套
1set



进料斗容积约6m3排废料溜槽为液压折叠式
The volume of feed hopper is about 6m3
The waste discharge chute is of hydraulic folding type

绞洗筛
Shaftless roller screen

规格:Ø1.6X6米;
绞洗筒:Ø1.3米,长约2.3米,板厚12mm,内设整条+分段式铰刀;
滚筒筛:内径1.3米,外径1.6米,长度3米;
内层编孔材质为耐磨提油杆,孔径40*240mm;
外层捆绑6mm耐磨锰钢筛网;
托轮:4组共8条6.50-10实心工程轮胎;
供水系统:采用中央供水+侧冲水方式,中央供水部分采用可拆卸式防堵喷水咀,60°交叉扇形均匀喷水。
电机:7.5KW摆线针*2台
Specification: Ø 1.6x6m;
Mixing drumIt is 1.3m long, about 2.3m long and 12mm thick. It is equipped with a whole + segmented reamer
Shaftless roller screenThe inner diameter is 1.3m, the outer diameter is 1.6m and the length is 3M;
The inner layer is made of wear-resistant oil lifting rod with an aperture of 40 * 240mm;
The outer layer is bound with 6 mm wear-resistant manganese steel screen;
Supporting wheel: 4 groups of 8 6.50-10 solid engineering tires in total;
Water supply system: central water supply + side flushing mode is adopted, the central water supply part adopts removable anti blocking water nozzle, and 60 ° cross fan-shaped uniform water spraying.
Motor: 2 sets of 7.5kW cycloid pin

1套
1set





固定式淘金毡溜槽
Fixed gold chute

规格:1000*3000mm
Specification: 1000 * 3000mm

1套
1set



两台2T手拉葫芦升降
Two sets of 2T chain block lifting

液压系统
Hydraulic system

液压站1台1 hydraulic station
液压支腿4条4 hydraulic Outriggers
折叠溜槽液压油缸1支
Folding chute hydraulic cylinder 1

1套
1set





离心水泵
Centrifugal pump

30KW 流量:260m3;输送距离:200-300米;扬程28米;6进5出
Flow: 260m3/h;
conveying distance: 200-300m;
lift: 28m
Inlet: 6 inches; outlet: 5 inches

1台
1set



含进水管道12米(橡胶钢丝管),出水管道30米(消防水带),超出部分由配件选择。
The water inlet pipe is 12m (rubber steel pipe), and the outlet pipe is 30m (fire hose). The excess part is selected by accessories.

7寸沙泵
7 inch sand pump

进料7寸;出料6寸Feed 7 inches; discharge 6 inches
输送距离40-60米,扬程10米The conveying distance is 40-60m and the lift is 10m
流量Flow:360m3 /h

2套
1set



配带出料管道(橡胶钢丝管)30米
Equipped with discharge pipe (rubber steel pipe) 30m

降压启动柜
Step down start cabinet

开关品牌:德力西Switch brand: Delixi

1套
1set



含至设备电机线,不含电缆线
Including motor line to equipment, excluding cable line

总功率
Total power

(不含液压站功率Excluding hydraulic station
