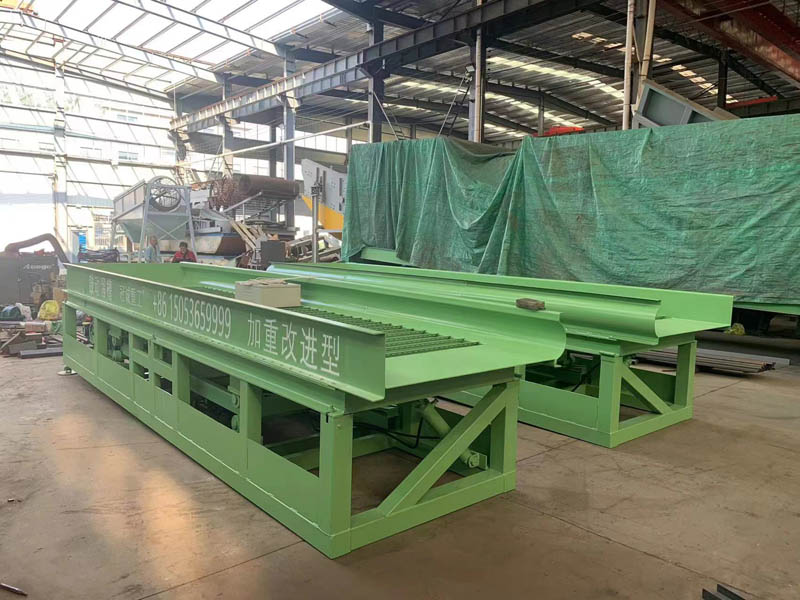

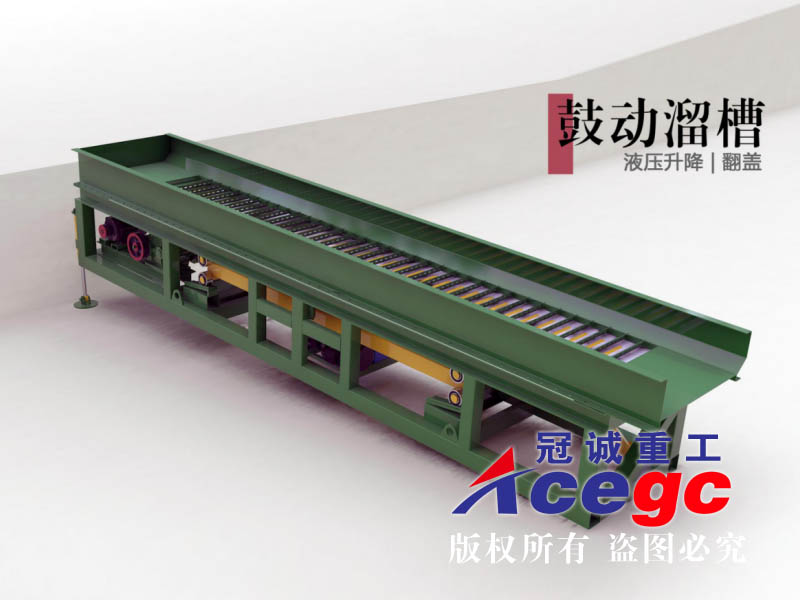

移动淘金设备配溜槽方案

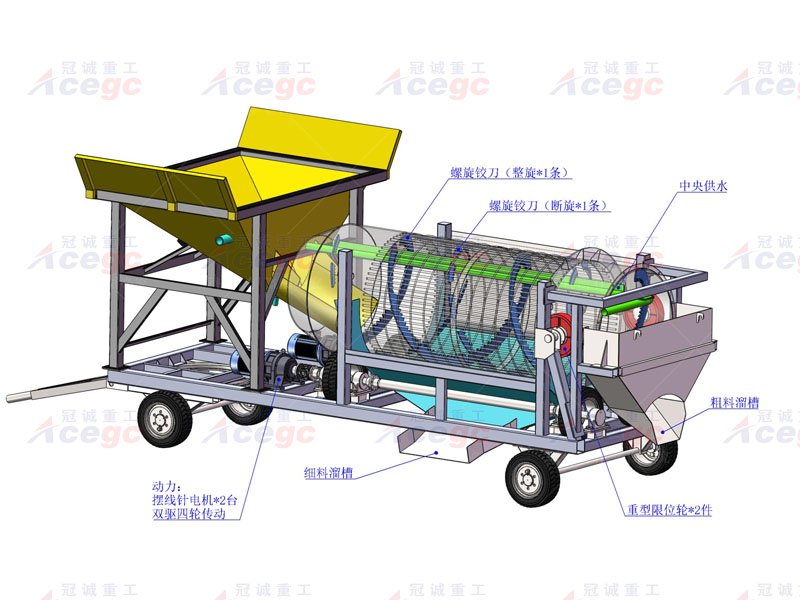

移动淘金设备

该套设备为我公司独立自主设计生产的新型移动式淘金设备，可以采用输送机、装载机或挖机多种上料方式，集洗矿、筛分作业一次性完成，较于老式滚筒洗矿机优势如下：
This set of equipment is a new type of mobile gold panning equipment independently designed and produced by our company. It can adopt a variety of feeding methods, such as conveyor, loader or excavator, and complete the ore washing and screening operations in one time. Compared with the old roller ore washing machine, the advantages are as follows:
1.传动系统改进：Drive system improvement:
a.滚筒托轮加大：采用4条Ø670mm耐磨实心橡胶轮胎，较于老式小轮胎使用寿命得到明显提升；
Roller support wheel enlargement: Use 4 Ø670mm wear-resistant solid rubber tires, compared with the old small tire service life has been significantly improved;
b.采用双动力四轮同步驱动，解决托轮打滑问题；
Adopt dual power four-wheel synchronous drive to solve the problem of supporting wheel slip;
c.传动轴、轴承均于老式进行加大，坚固耐用。
The drive shaft and bearing are all enlarged in the old style, strong and durable.
2.对滚筒进行改进：To improve the drum:
a.滚筒壁厚增加，筛分段采用油田耐磨提油杆编网，滚筒的使用寿命得到质的提升；
The thickness of the drum wall increases, and the screen section adopts the wear-resistant oil rod of the oil field to weave the net, which improves the service life of the drum qualitously.
b.滚筒内铰刀采用整体式螺旋锯齿状绞刀+分段式螺旋锯齿状绞刀，并且对分段式螺旋锯齿状绞刀进行密集布置，以保证矿料得到充分搅拌清洗。
The reamer in the roller adopts integral spiral serrated reamer + segmented spiral serrated reamer, and the segmented spiral serrated reamer is densely arranged to ensure that the ore material is fully mixed and cleaned.
3.对挡水板、料斗等多处结构进行优化，现在设备不会溅水、漏水。
To optimize the structure of the water baffle, hopper and other places, now the equipment will not splash water, water leakage.

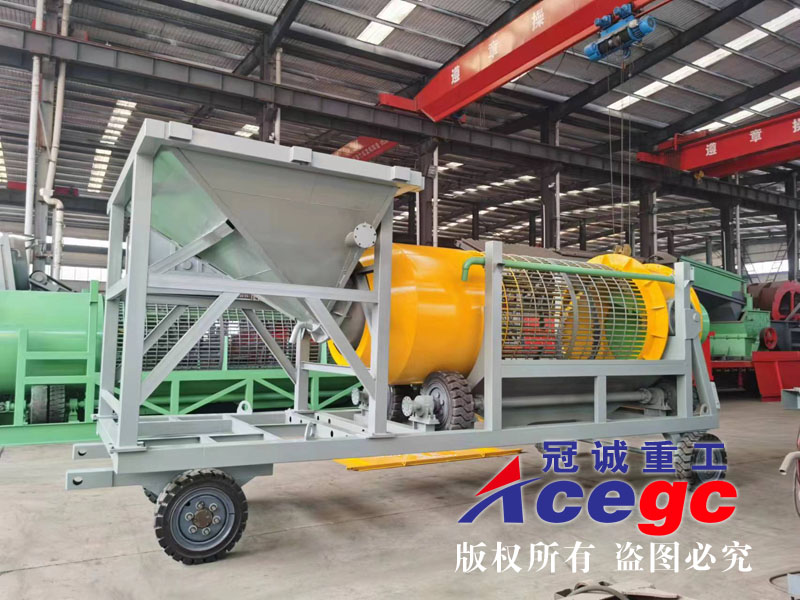

移动淘金设备

总功率（不含水泵） Total power (excluding water pump)		11Kw
底盘 Chassis	规格/mm Specification /mm	6600X2110
	材质 Texture	160X160方管Square tube
	牵引&转向 Traction & steering	牵引杆&1100转盘 Traction bar &Ø1100 slewing support
	行走轮胎 Walking tire	Ø670mm实芯耐磨工程轮胎*4条
进料仓 eed hopper	规格/mm Specification /mm	3000X2100
	上料高度 Filling height	3.1m
绞洗筛 Stranded washing roller screen	规格/mm Specification /mm	Ø1500X4500
	筛网长度 Length of screen	2.4m
	筛网骨架 Screen mesh frame	采用Ø22mm油田耐磨提油杆间隔4CM编网 Ø22mm oil field wear-resistant lift rod spacing 4CM net
	铰刀 Rimer	多条螺旋铰刀从头部覆盖至尾部 Multiple spiral reamer covers from head to tail
	滚筒托轮 Roller supporting wheel	Ø670mm实芯耐磨工程轮胎4条 Ø670mm solid wear-resistant tires 4 sets
	动力 Power	5.5KW摆线针2台（双动力四驱，变频调速） 5.5KW cycloid needle 2 sets (dual power four-wheel drive, frequency control)
排料系统 Marker making	细料 Fine material	溜槽排料 Chute discharge material
	粗料 Coarse material	溜槽排料 Chute discharge material
	输送机	不含
供水系统 Water supply system	进料仓 Feed hopper	2道冲水 Two flush pipes
	滚筒筛 Rotary screen	中央冲水：鸭嘴式喷水咀，程120°扇形喷射 Central flush pipe:The spray head is 120° cross-spray 侧筛网冲水Side screen flush
	水泵Water pump	不含Exclusive
供电系统 Power supply system	控制柜 Controller cabinet	不含Exclusive
	线缆Cable	不含Exclusive
