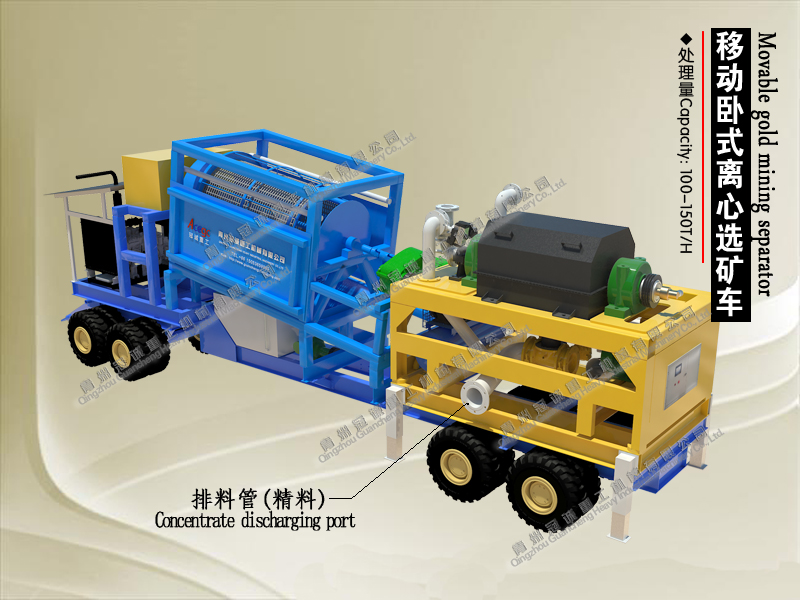

移动淘金设备-移动卧式离心选矿车

【移动淘金设备简介】

本套移动淘金设备为移动卧式离心选矿车，处理量每小时100-150吨，回收率可达到90%以上，是青州冠诚重工机械有限公司根据用户实际需求及多年淘金机械制作经验独立研发设计制作而成，具有移动灵活方便、操作简单、故障率低、维护保养方便等特点。

该移动淘金设备主要优势：

1、移动灵活方便，可原地180度转向，只需要一辆牵引车辆便可随时轻松移动至工作场地。

2、采用了沙泵+缓冲箱的进料方式，在配合其它淘金设备时无需寻找高低落差、搭建平台。

3、可以配合多种其它的淘金设备使用，如振动溜槽、鼓动溜槽、抽沙船等，提高处理量与回收率。

4、可轻松改变进料方式：可以把缓冲箱换成大料斗进料方式，安装轻松方便。

5、卧式全自动排矿离心机在淘金车上使用时工作可靠、稳定，并且由PLC电脑全自动控制，极大的提高了工作效率。

Introduction

This type of movable trommel screen&horizontal centrifuge gold separating car capacity 100-150ton/h,recovery can be high to 90%,is designed by Qingzhou guangcheng heavy industry co.,Ltd from user requirement and our experience over 10years,can be moved and operate easliy, easy maintenace&seldom breakdown.

The advantage:

1.Can move easily,circled in 180 degree,only need one car can be drived to destination

2.Feeding of this type is newly by sand pump&input speed reducing box,no need of frames to hold it while cooperation with other gold machines

3.Can easliy cooperate with other gold machines,such as shaking sulice,suction dredger etc with high recovery

4.The feeding type can be easily changed to be feed hopper as customized

5.The horizontal centrifuge can be used highly effient and steady,controled by PLC with a good performance

【移动淘金设备流程概述】

原料通过沙泵打入缓冲箱内进行减压，进入滚筒筛内进行清洗筛选分级为：细料与粗料(即废料)两种规格，其中废料直接通过废料溜槽排入废料区域；

细料排入细料箱内通过沙泵打入一台由PLC控制的卧式全自动排矿离心机内进行精选，精料会自动通过精料管道排出，废料通过废料管道排出至废料区域。

The technology process

The raw material is poured into input speed reducing box by sand pump to reduce pressure and feeding speed,then enters into the trommel screen separator to be separating into 2sizes,small and big size which is useless directly geting rid by scrap sluice

The samll size material is discharged into horizontal automatic discharging centrifuge controlled by PLC through sand pump, and the concentrate automatically discharged from concentrate discharge port, scrap material is discharged into the waste area from the scrap material pipe

【技术参数】

名称	规格	数量	功率	备注
缓冲箱 Input speed reducing box		1套	-
滚筒筛 Trommel screen separator	内径1.3米，外径1.6米，净筛网长度3米 Inner dia.:1.3m,outside dia.:1.6m,screen mesh Length3m	1套	-
底盘 Base plate	重型汽车底盘设计，4轴16条轮胎 Designed from car plate,4 axle 16tyres	1套	-
机械支撑腿 The frame of legs	支撑离心机用 To balance the auto discharging centrifuge	4件	-
离心机 Centrifuge concentrator	1200#卧式全自动排矿离心机 1200#horizontal auto discharging centrifuge	1台	21.5
沙泵 Sand pump	4inch	1台	15	供离心机 Working for centrifuge
沙泵 Sand pump	6inch	1台	18.5	进缓冲箱 Working for input speed reducing box
离心泵 Centrifugal pump	11KW	1台	11	主供水系统 Working for water system
发电机组 Generation unit	建议使用120KW发电机组 Advise to use 1200KW	1台	-	选配 Customized
配电柜 Electricity cabint		1套	-
总功率 Total power	66KW
